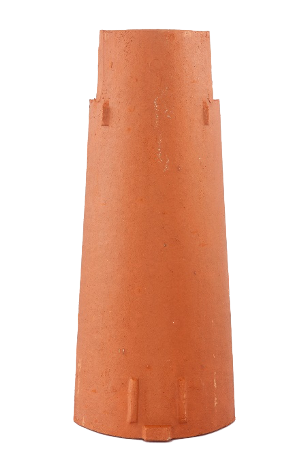

Spanish Tile
Tile Specification
Length | 400 mm ± 4 mm |
Width | 165 mm ± 5 mm |
Effective Length | 330 mm ± 3 mm |
Effective Width | 197 mm ± 3 mm (Tile Combination) |
Max Weight | 2.4 kg ± 0.05 kg |
Water Absorption | < 10% |
Loading Bearing Capacity(kN/m) | >5N/mm2 |
Coverage | 290 pcs. Per 100 sq.ft |
Water Permeability | No formation of water droplets within 6 hours |
Rafter Specification
Rafter Section | 4" x 2" | 5" x 2" | 6" x 2" |
Roof Angle(⊖) | Rafter Span (L) | ||
25° Minimum | 8' | 8' to 12' | 8' to 12' |
25° and Above | 8' | 8' to 10' | 8' to 12' |
